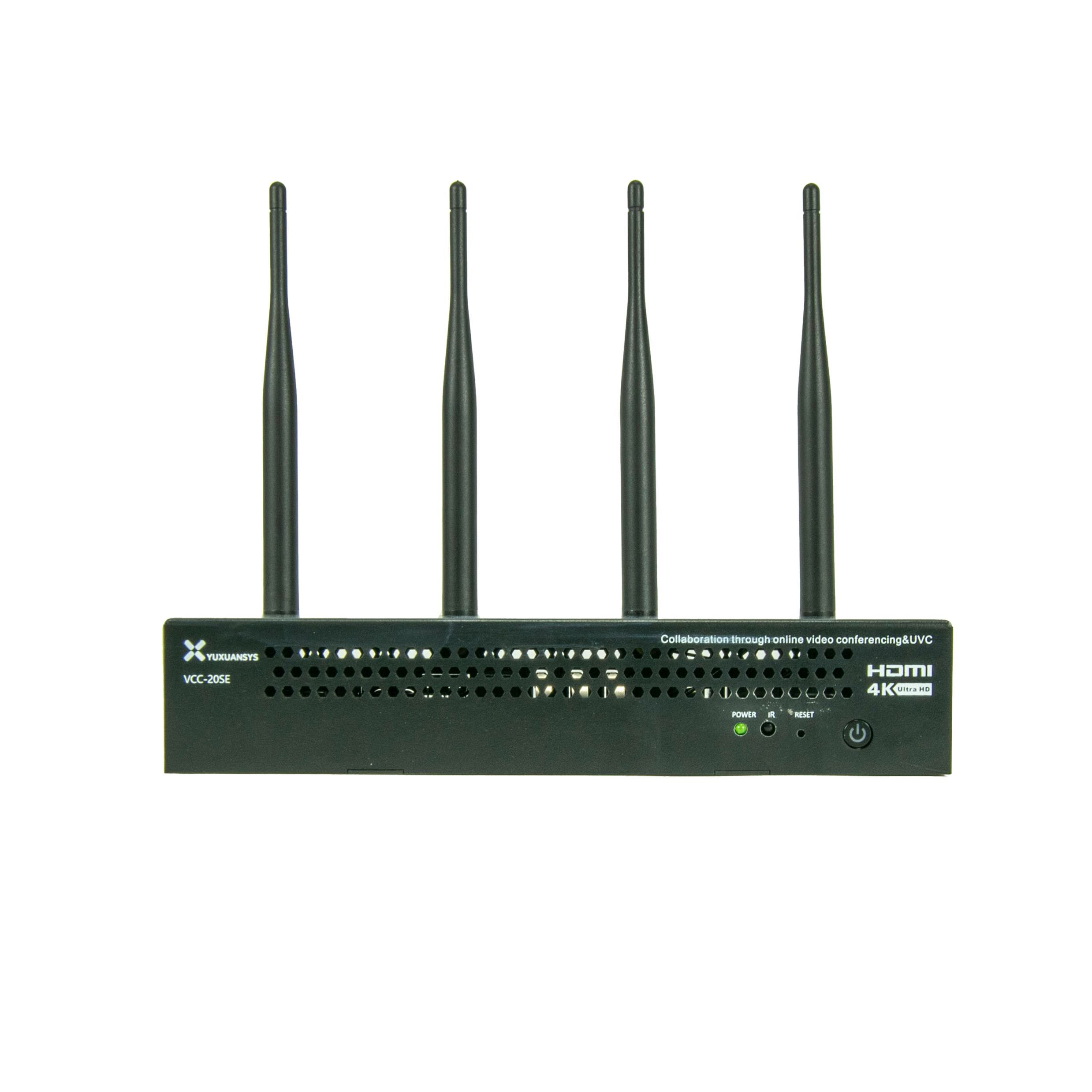

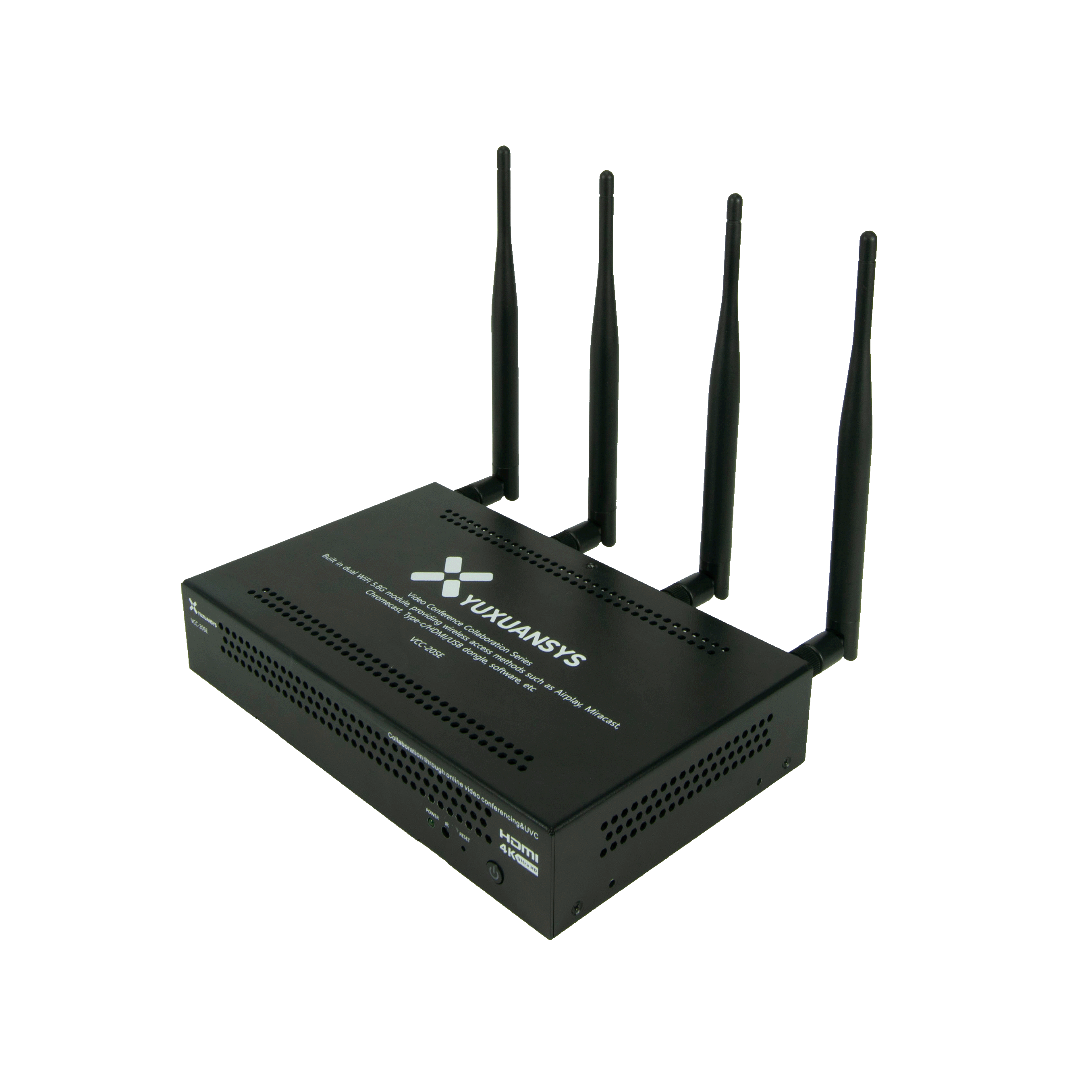

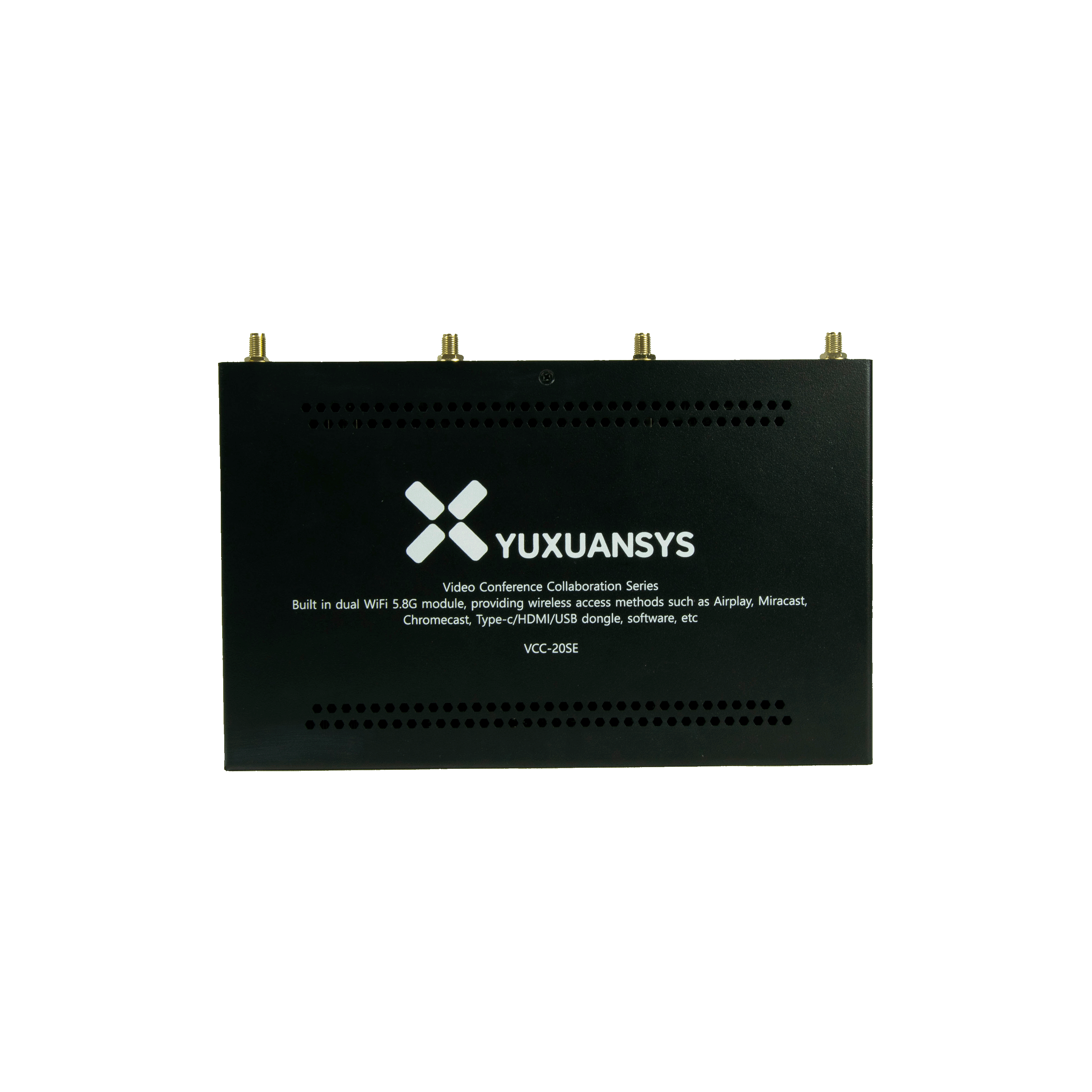

VCC-20SE
Online video conferencing collaboration host
Product Overview
Wired and wireless dual output dual network port intelligent collaboration system

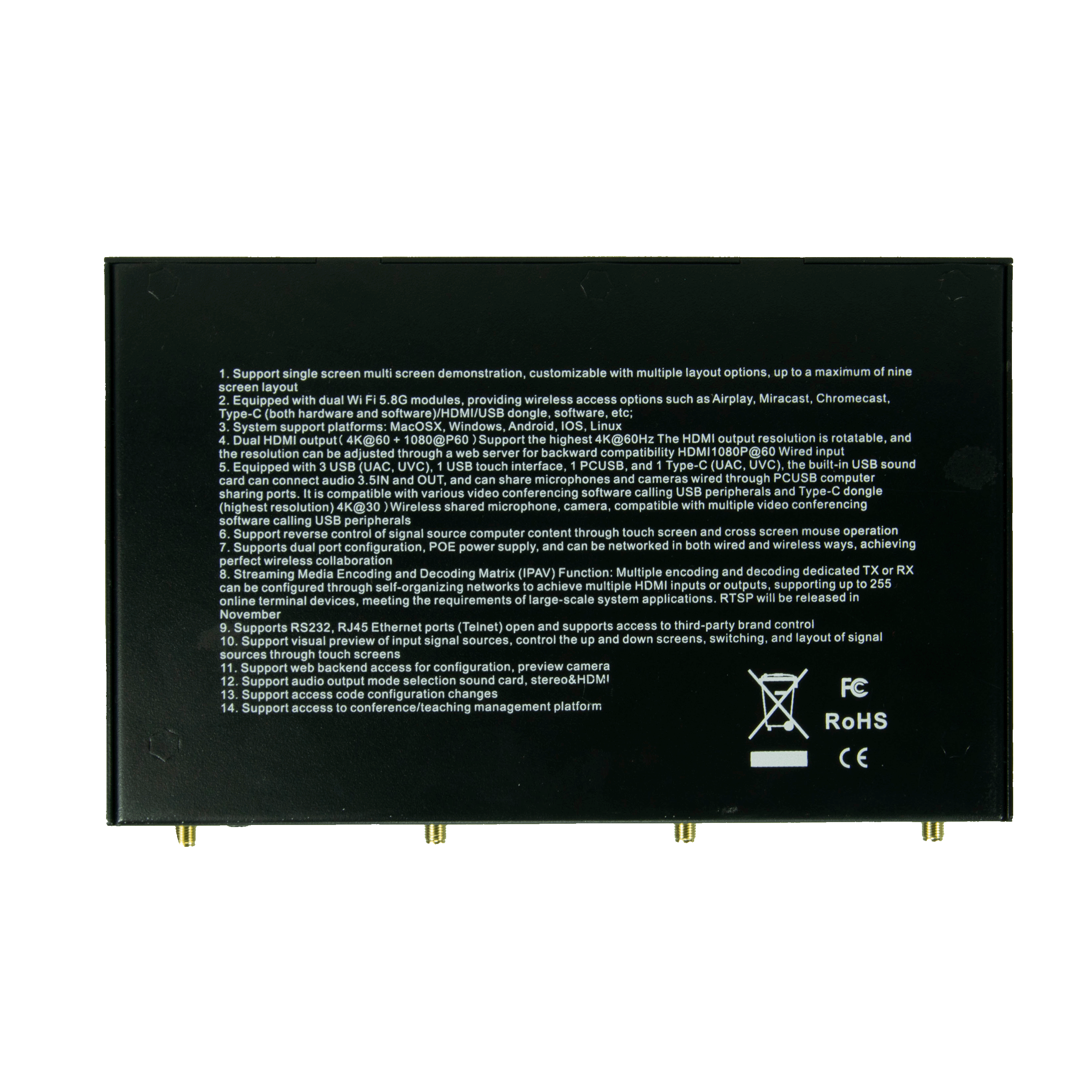

Product Features
Main features include
- Supports single-screen multi-picture presentation, can customize multiple screen layouts, and supports a maximum of nine screen layouts
- Built-in dual Wi-Fi 5.8G modules, providing Airplay, Miracast, Chromecast and Type-c (hardware & software simultaneously)/HDMI/USB dongle, software and other wireless access methods
- System support platform: MacOSX, Windows, Android, IOS, Linux
- Dual HDMI output (4K@60 1080@P60) supports HDMI output resolution up to 4K@60Hz, the screen can be rotated, the resolution can be adjusted through the web server and is backward compatible, one HDMI1080P@60 wired input
- Equipped with 3 USBs (UAC, UVC), 1 USB touch interface, 1 PCUSB, 1 Type-C (UAC, UVC). The built-in USB sound card can access audio 3.5IN and OUT. The microphone and camera can be shared wired through the PCUSB computer sharing port. It is compatible with a variety of video conferencing software to call USB peripherals. The Type-c dongle (maximum resolution 4K@30) wirelessly shares the microphone and camera, and is compatible with a variety of video conferencing software to call USB peripherals.
- Supports reverse control of signal source computer content and mouse cross-screen operation through the touch screen
- Supports dual network port configuration, POE power supply, can be used for wired and wireless networking, perfect wireless collaboration
- Streaming media codec matrix (IPAV) function: Multiple codec-specific TX or RX can be configured through a self-organizing network to achieve multiple HDMI inputs or outputs, supporting up to 255 online terminal devices to meet large system applications
- Support RS232, RJ45 network port (Telnet) open to support access to third-party brand control
- Supports visual preview of input signal sources, and controls the upper and lower screens, switching and layout of signal sources through the touch screen
- Supports web background access for configuration and camera preview
- zhi-chi-yin-pin-shu-chu-mo-shi-xuan-ze-sheng-ka-li-ti-sheng-hdmi
- Support access code configuration changes
- Support access to conference/teaching management platform
Product Specifications
Technical parameter details:
| Product Model | VCC-20SE |
| Product Name | Online video conferencing collaboration host |
| Brand | YUXUANSYS |
| HDMI Output 1 | 4K@60Hz |
| HDMI Output 2 | 1080P@60Hz |
| HDMI Input | 1080P@60Hz |
| Wireless screen projection protocol | Airplay、Miracast、Chromecast |
| Wi-Fi module | Dual Wi-Fi 5.8G module |

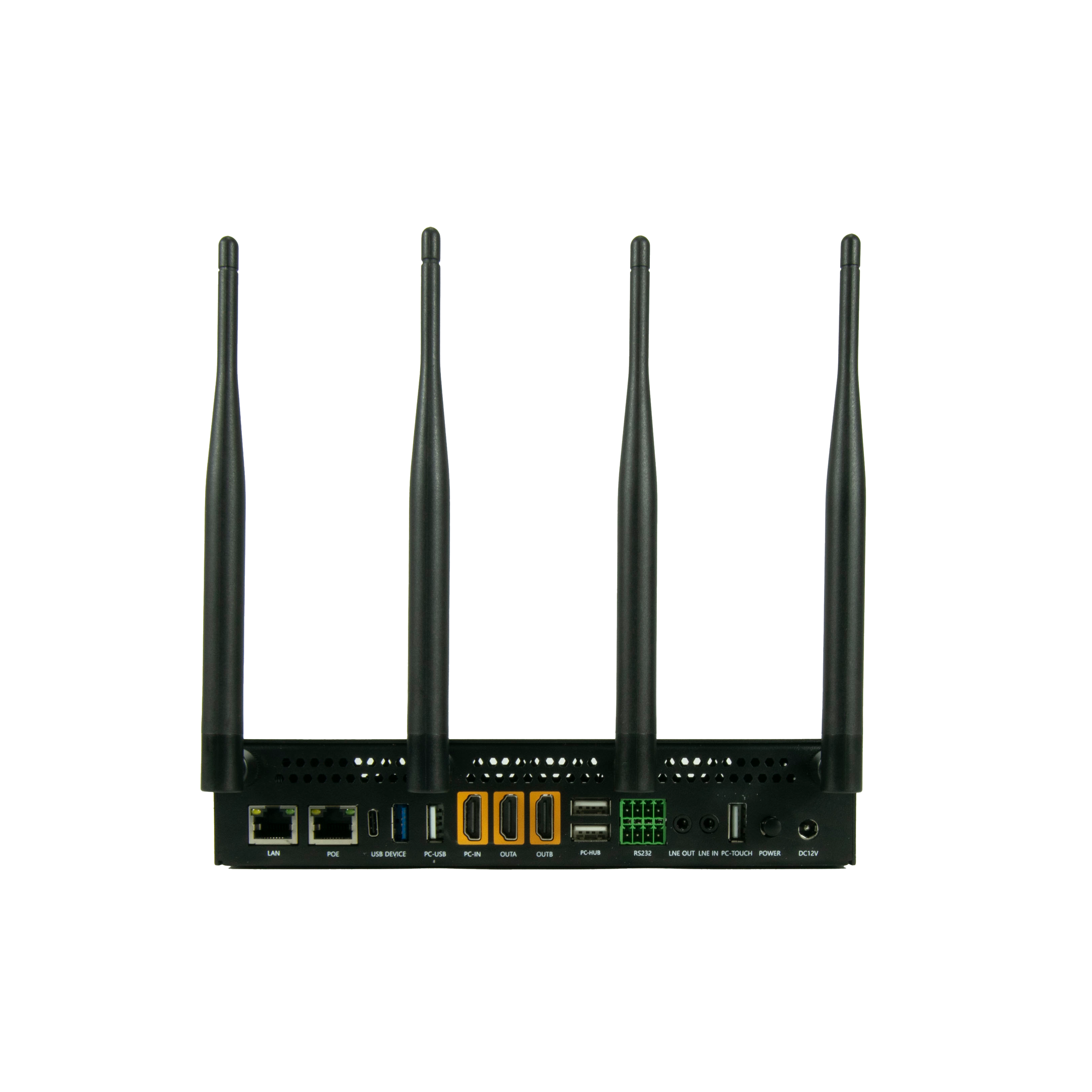

| USB Interface | 3 USB (UAC, UVC), 1 USB touch interface, 1 PCUSB, 1 Type-C |
| Network Interface | Dual network ports, support POE power supply |
| Control Interface | RS232, RJ45 network port (Telnet) |
| Support platform | MacOSX、Windows、Android、IOS、Linux |
| Multiple screen layout | Supports up to nine screen layouts |
| Codec matrix | IPAV streaming codec, supports 255 online terminals |
| Audio Interface | 3.5mm audio input/output, built-in USB sound card |
| audio mode | sound card, stereo |
| Control Method | Touch screen reverse control, Web background control |
| System management | Support access to conference/teaching management platform |
| Special Features | Mouse cross-screen operation, visual signal preview |
