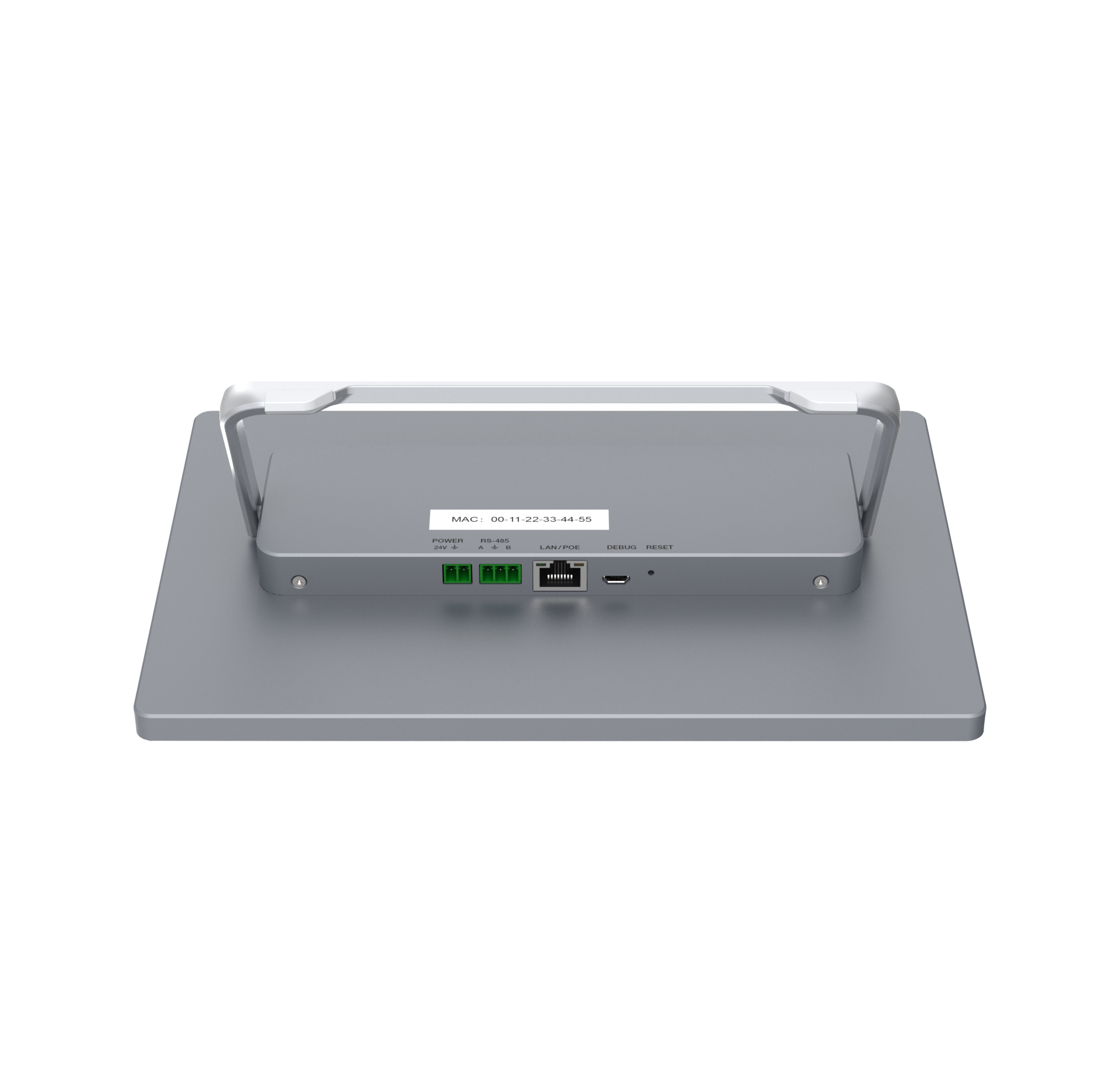

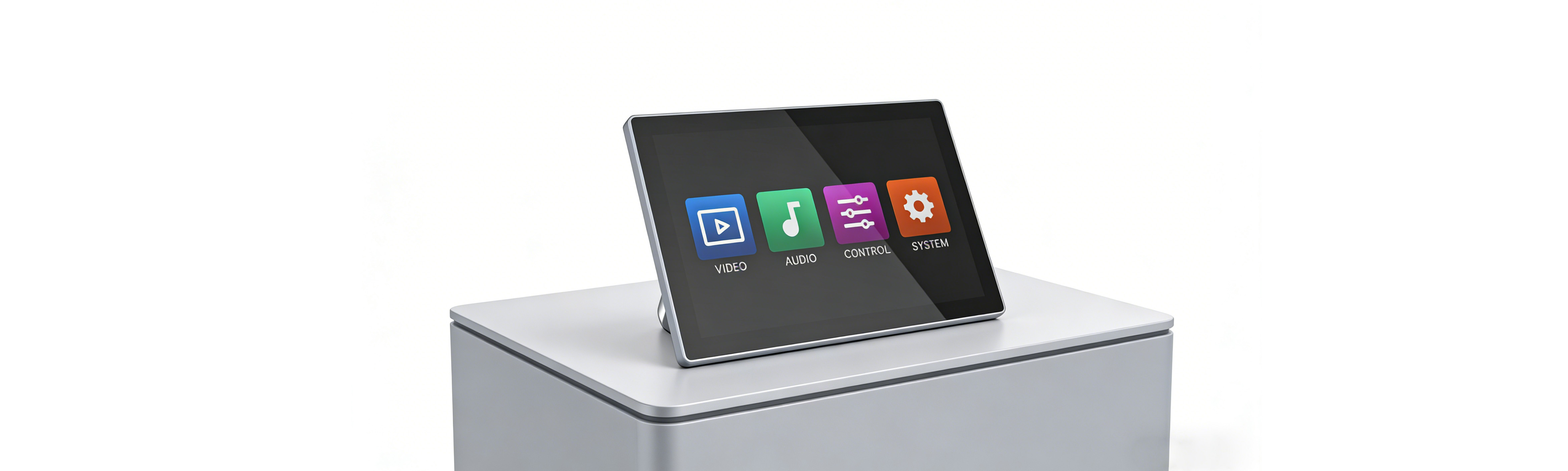

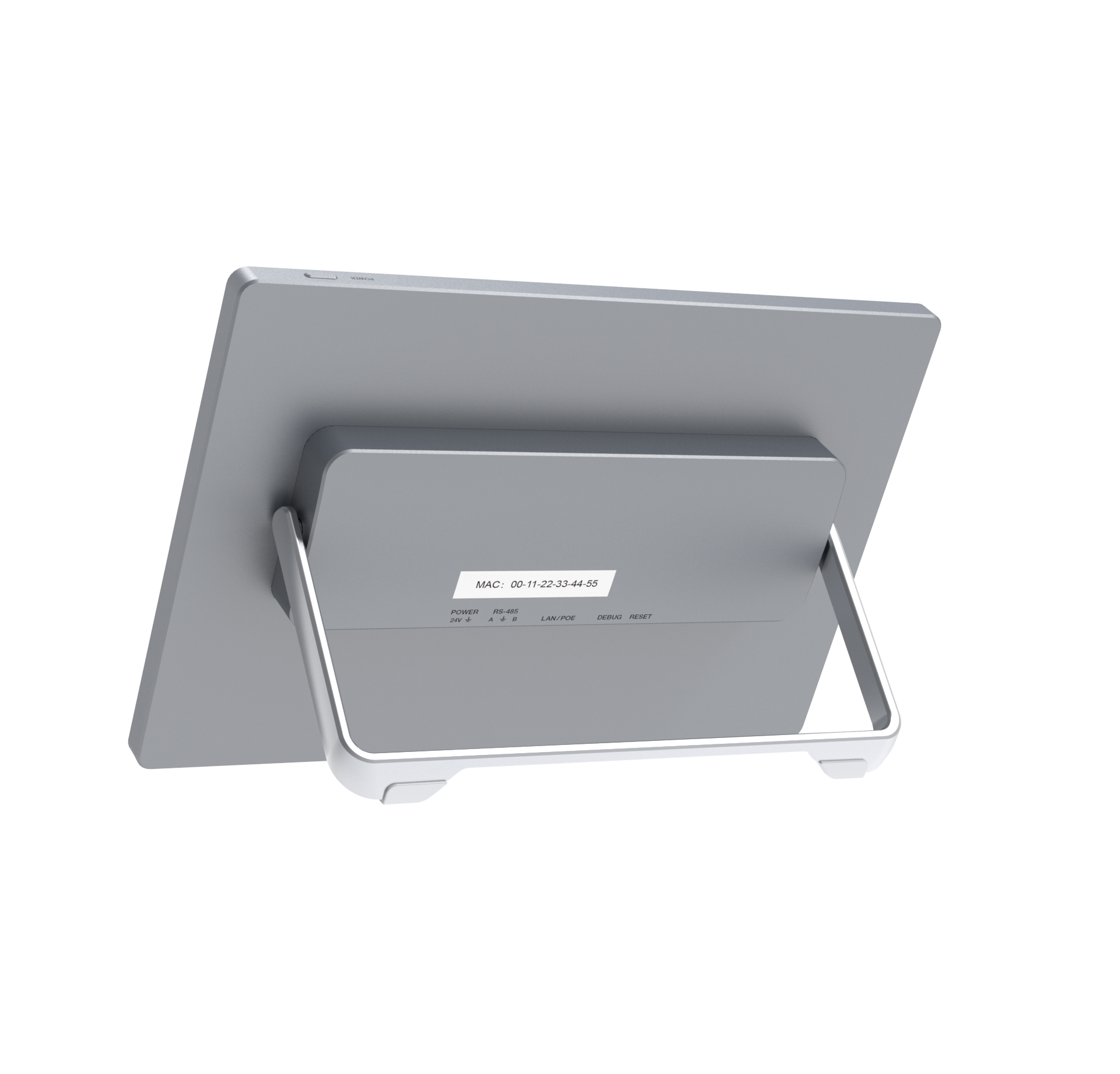

VC-BAT2-TOUCH
Dial-up touch screen (built-in SIP dial-up software, ROOSM switching software, central control software)
Product Overview
Online video conferencing dial screen
Product Features
Main features include
- 10-inch high-quality display, 1280*800 (16:10) resolution, desktop screen design
- Two modes in one machine, can be used as touch screen central control or user terminal
- Supports an RS-485 communication serial port and can configure 8 baud rates in the range of 2400-115200bps
- Support password access to host system management web pages
- Comply with industry standard network communication protocols (TCP/IP, HTTP, UDP, Websocket)
- With 1 Gigabit network port, the maximum rate can reach 1G/bps
- Dual power supply mode, supports POE or independent DC power supply
- Interface and function configuration through central control software
- Support remote control, remote O
- Support factory reset
Product Specifications
Technical parameter details:
| Display | 10 inches, 1280×800 (16:10) |
| working mode | Touch screen central control/user terminal |
| RS-485 interface | 1, 2400-115200bps (8 baud rates configurable) |
| System security | Password to access system management web page |
| Communication protocol | TCP/IP、Http、UDP、Websocket |
| Network Interface | Gigabit network port × 1 (up to 1Gbps) |
| power mode | POE power supply/DC independent power supply |
| Configuration Method | Central control software configuration |
| remote function | Remote control, remote O |
| recovery function | Support factory reset |
